Place of Origin : Guangdong, China
Product Name : Compact Automatic Tool Setting Instrument
MOQ : 10 pieces
Product Model : MP13-10
Repeatability : 0.0005mm (Condition: Operating speed 50-200mm/min)
machinery test report : Not Available
Brand Name : MAKINOPC
Contact life : 3 million times
weight (kg) : 1.5
Cable : 2m oil resistant (length can be customized), 2 cores
video outgoing-inspection : Provided
Diameter of counterface : cp 10mm
Price : $29.50-32.70 / piece
Output Mode : NC normally closed type
warranty : 1 Year
Machine Type : Milling Machine, shaping machine, Grinding Machine, Drilling Machine, lathe machine
Stroke : 5m
Protection structure : IP68 depth waterproof
Contact force : 1.0N(Mounting condition must be vertical)
Product Name | Compact Automatic Tool Setter |
Product Model | MP13-10 |
Diameter of counterface | 10mm |
Output Mode | NC normally closed type |
Pre-stroke | No |
Stroke | 5m |
Repeatability | 0.0005mm (Condition: Operating speed 50-200mm/min) |
Contact life | 3 million times |
Protection structure | IP68 depth waterproof |
Contact force | 1.0N(Mounting condition must be vertical) |
Contact surface material | Super hard alloy |
Surface treatment | Grinding 4S |
Contact rating | DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load |
Contact voltage | DC24V 100mA resistive load |
Cable | 2m oil resistant (length can be customized), 2 cores |
Net Weight | 149. 3g |
Gross Weight | 180g |







|
|

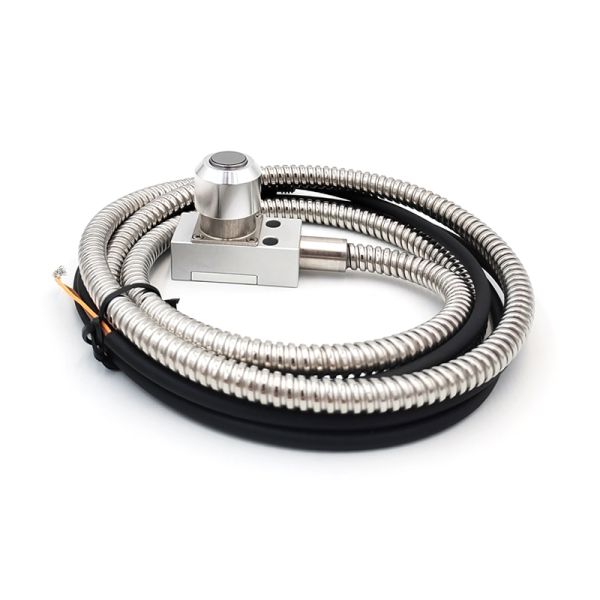

MP13-10 CNC Tool Setter Broken Blade Detection Sensor with 10MM Counterface Diameter for CNC Engraving Milling Machine Images |
