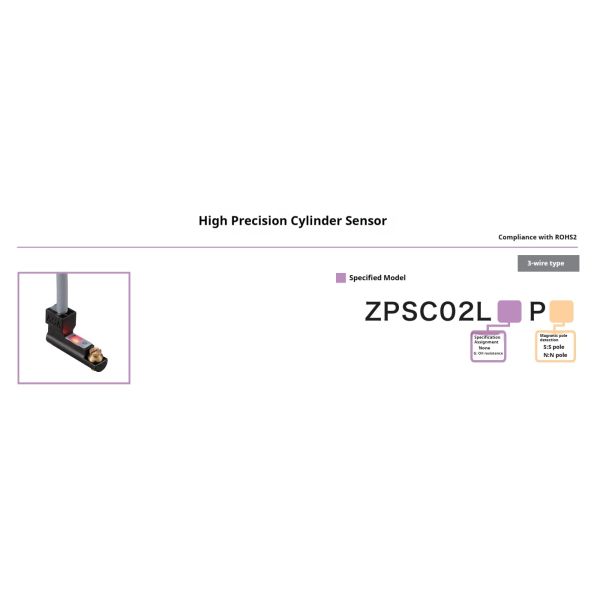

Makinopc Original Cylinder Sensor High Precision Magnetic Switch Perceptron Electronic Sensor Japan Import ZPSC02LP

Name: Makinopc Original Cylinder Sensor High Precision Magnetic Switch Perceptron Electronic Sensor Japan Import ZPSC02LP
Brand: Makinopc
Price: 13.80 USD

Quality Makinopc Original Cylinder Sensor High Precision Magnetic Switch Perceptron Electronic Sensor Japan Import ZPSC02LP for sale

Price : $13.80-15.98 / set

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

Supply Voltage : DC5~24V

Output mode : NPN normally open (ON at proximity)

Current consumption : 12mA MAX

Shell Material : Glass fiber reinforced resin: Black

Output current : 80mA MAX (DC12V~24V)

Response time : 16μ sec or less

Place of Origin : Guangdong, China

Brand Name : Makinopc

Magnetic detection direction : Downward

warranty : 1 Year

Withstanding Voltage : AC1000V

Magnetic sensitivity : 3~4mT

MOQ : 1 set

Insulation resistance : DC250V

weight (kg) : 0.5

Contact Now

Products Description

2 wires AC DC 250V Magnetic Proximity Switch Sensor for Air Pneumatic Cylinder

Key Features

Cylinder sensors are mainly used to control and regulate the engine combustion process, which can improve the fuel efficiency and operational stability of the internal combustion engine. In automobiles, the main role of the cylinder sensor is to detect the pressure change inside the cylinder, control the ignition timing and oil volume, etc., to ensure the normal operation of the internal combustion engine. In the industrial field, cylinder sensors are mainly used to detect the internal state of the system and to control and adjust the system.

Product Paramenters

Supply Voltage	DC5～24V
Detection Poles	ZPSC02L□PS: S pole
Detection Poles		ZPSC02L□PN: N pole
Magnetic sensitivity	3～4mT
Magnetic detection direction	Downward

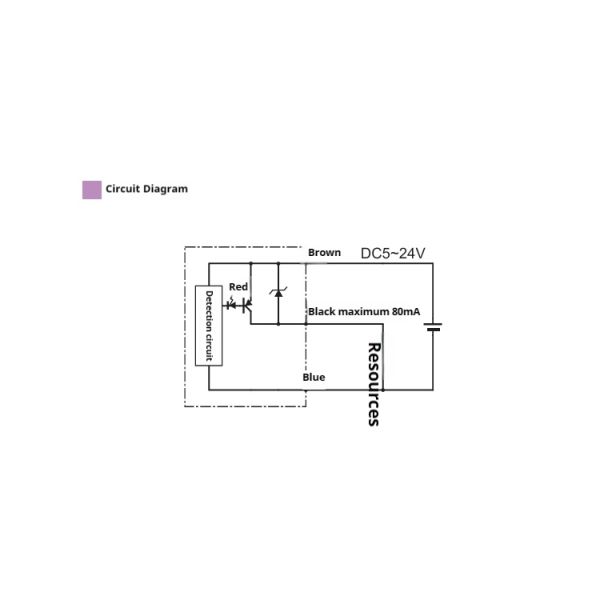

Output mode	NPN normally open (ON at proximity)
Output current	80mA MAX (DC12V～24V)
Current consumption	12mA MAX
Response time	16μ sec or less
Withstanding Voltage	AC1000V
Withstanding Voltage		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
Insulation resistance		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.6×1m
		S pole: Gray
		N-pole: Black
Shell Material	Glass fiber reinforced resin: Black
Installation	Attached screw Tightening torque 0.06N-m
Indicator light	Red color
Protection level	IP67

Details Images

Makinopc Original Cylinder Sensor High Precision Magnetic Switch Perceptron Electronic Sensor Japan Import ZPSC02LP

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
