Place of Origin : Guangdong, China
warranty : 1 Year
Supply Voltage : DC5~24V
Brand Name : Makinopc
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
MOQ : 1 set
weight (kg) : 0.5
Price : $14.30-17.80 / set
Supply Voltage | DC5~24V |
Detection Poles | ZPSC01□PS: S pole |
ZPSC01□PN: N pole | |
Magnetic sensitivity | 3~4mT |
Magnetic detection direction | Downward |
Output mode | NPN normally open (ON at proximity) |
Output current | 80mA MAX (DC12V~) |
Current consumption | 12mA MAX |
Response time | 16μ sec or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell Material | Glass fiber reinforced resin: Black |
Installation | Attached screw Tightening torque 0.06N-m |
Indicator light | Red color |
Protection level | IP67 |







|
|

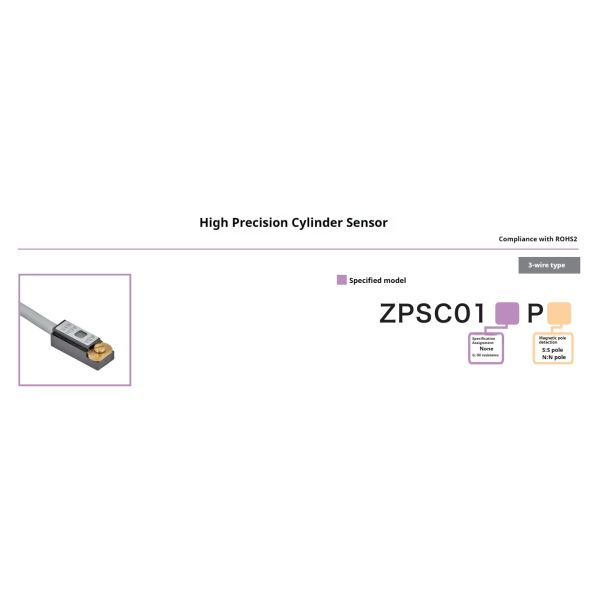

ZPSC01P High Precision Cylinder Inductive Proximity Sensor Switch with DC5-24V 80mA IP67 Protection Level Images |
