Makinopc High Precision Proximity Iron Sensor Switch for CNC Machine Tools with Normally Open and Normally Closed Output ZPSF002

Name: Makinopc High Precision Proximity Iron Sensor Switch for CNC Machine Tools with Normally Open and Normally Closed Output ZPSF002
Brand: Makinopc
Price: 7.20 USD

Quality Makinopc High Precision Proximity Iron Sensor Switch for CNC Machine Tools with Normally Open and Normally Closed Output ZPSF002 for sale

Price : $7.20-8.30 / piece

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

MOQ : 1 piece

Place of Origin : Guangdong, China

warranty : 1 Year

Brand Name : Makinopc

weight (kg) : 0.5

Contact Now

Products Description

Key Features

Proximity sensors are characterized by long service life, reliable operation, high repetitive positioning accuracy, no mechanical abrasion, no sparks, no noise, and strong vibration resistance. In the automatic control system can be used as limit, counting, positioning control and automatic protection link, is widely used in machine tools, metallurgy, chemical industry, textile and printing industries.

Product Paramenters

Supply Voltage	DC5～24V
Magnetic detection direction	Upward
Maximum detection distance	Square iron plate 30×10t	6mm
	Square iron plate 30×2t	4mm
Output mode	ZPSF002:
	NPN normally open (ON for proximity)
	ZPSF002(B)
	NPN normally closed (OFF at proximity)
Output current	12mA MAX
Consumption current	15mA MAX
Withstanding Voltage	AC1000V
	(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
	(20MΩ or more, between the whole charging unit and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～80%RH
Wire Specification	φ2.8×1m
	ZPSF002: Gray
	ZPSF002(B): Black
Shell material	Glass fiber reinforced resin: Black
Installation	M3 screw, tightening torque 0.3N-m
Indicator light	Red (color)

※ Output conversion and current increase can be realized by wire accessories.

Details Images

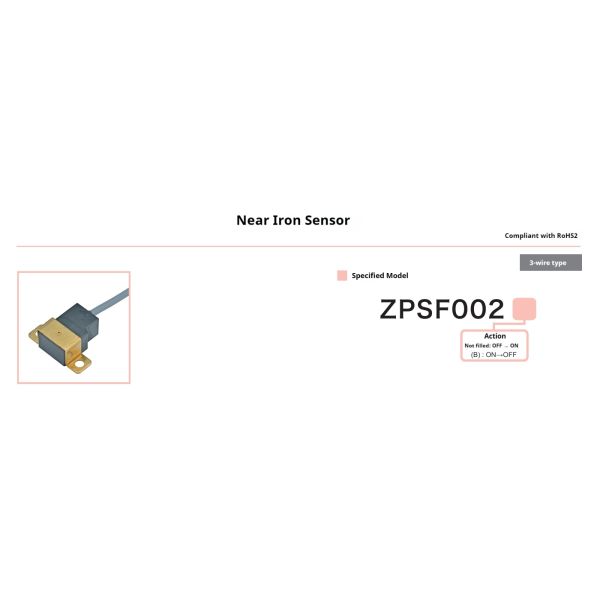

Makinopc High Precision Proximity Iron Sensor Switch for CNC Machine Tools with Normally Open and Normally Closed Output ZPSF002

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
