Current consumption : 12mA MAX
Brand Name : Makinopc
Magnetic detection direction : Downward
Price : $10.50-15.30 / set
Supply Voltage : DC5~24V
Response time : 5μ sec
Shell Material : Glass fiber reinforced resin: Black
warranty : 1 Year
Output mode : NPN normally open (ON at proximity)
MOQ : 1 set
Place of Origin : Guangdong, China
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Insulation resistance : DC250V
Magnetic sensitivity : 3~4mT
weight (kg) : 0.5
Output current : 15mA MAX
Withstanding Voltage : AC1000V
Supply Voltage | DC5~24V |
Detection Poles | S-pole-N-pole |
Magnetic sensitivity | 4.5~6mT |
Magnetic detection direction | Both upward and downward |
Output mode | NPN normally open (ON when close) |
Output current | ZPSC007: 15mAMAX |
ZPSC007-LED: 12mA MAX | |
Current consumption | ZPSC007: 12mAMAX |
ZPSC007-LED: 15mA MAX | |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging section and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the charging section as a whole and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m Gray |
Shell Material | Glass fiber reinforced resin: Black |
Installation | Screw included Tightening torque 0.06N-m |
Indicator light | ZPSC007-LED: Red |
(Distance from sensor body 100mm) | |
Protection level | IP67 |







|
|

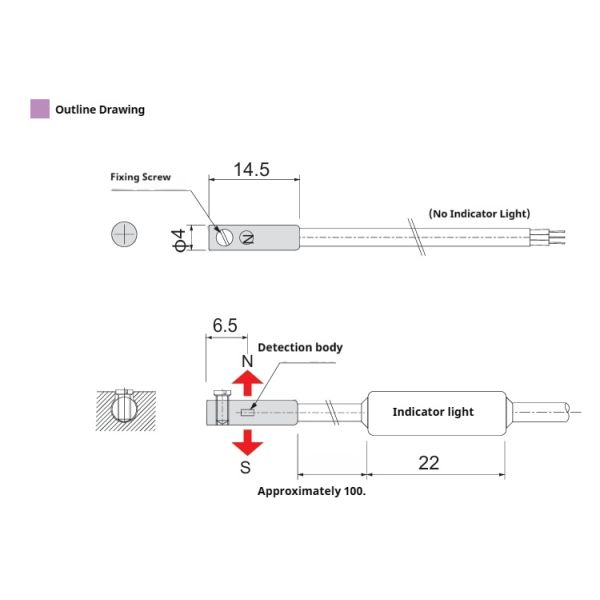

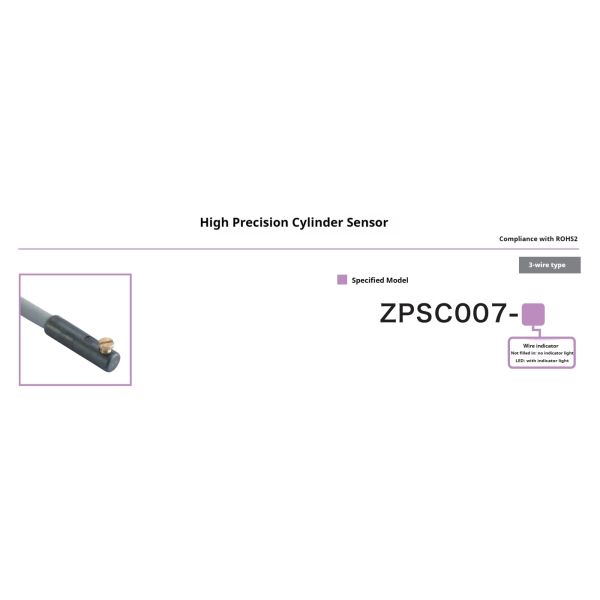

Stable Automation CNC Machine Tool Detection Cylinder Sensor 12v Small Magnetic Proximity Switch with Red Indicator Light ZPS007 Images |
