Protection level : IP67
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Magnetic sensitivity : 2.5~3.5mT
Response time : 50m sec
Indicator light : Red color
Brand Name : Makinopc
Shell Material : Glass fiber reinforced resin: Gray
Place of Origin : Guangdong, China
Supply Voltage : DC12~24V
Current consumption : 0.5mA or less max. when OFF
weight (kg) : 0.5
Output current : 50mA MAX
Installation : Attached screw Tightening torque 0.06N-m
MOQ : 1 set
Magnetic detection direction : Downward
warranty : 1 Year
Price : $17.50-19 / set
Supply Voltage | DC12~24V |
Detection Poles | ZPSC0013R-S: S pole |
ZPSC0013R-N: N pole | |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Downward |
Output Current | 50mA MAX |
Leakage Current | 0.5mA or less max. when OFF |
Response time | 50m sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the charging section as a whole and the case) | |
Operating Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell Material | Glass fiber reinforced resin: Gray |
Installation | Attached screw Tightening torque 0.06N-m |
Indicator light | Red color |
Protection level | IP67 |







|
|

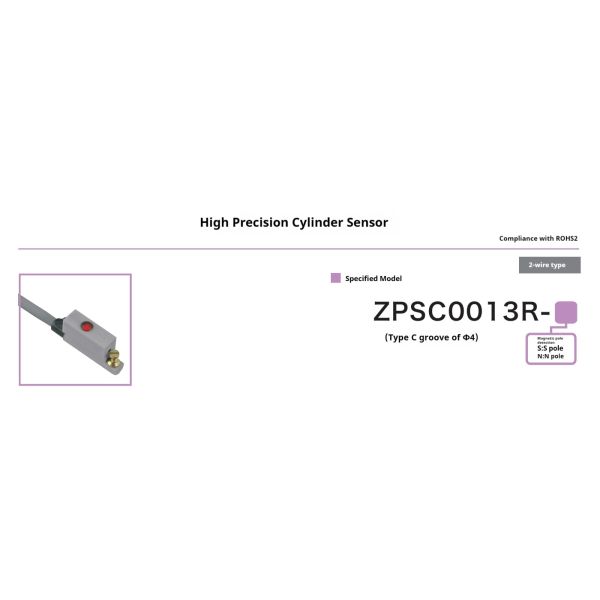

High Precision Machining Pneumatic Cylinder Elevate Automation Position Sensing Smart Cylinders ZPSC0013R Images |
