Magnetic detection direction : Forward
Magnetic sensitivity : 5~7mT
Response time : 5μ sec
Shell material : SUS tube
Protection class : IP65
Price : $6.30-8.30 / piece
weight (kg) : 0.5
Current consumption : 12mA MAX
warranty : 1 Year
Output mode : NPN normally open (ON when close)
Detection Poles : S pole
Place of Origin : Guangdong, China
Brand Name : Makinopc
Supply Voltage : DC5~24
MOQ : 1 piece
Output current : 15mA MAX
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Supply Voltage | DC5~24V |
Detection Poles | S-pole |
Magnetic sensitivity | 5 ~7mT |
Magnetic detection direction | Side |
Output mode | NPN normally open (ON when close) |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m Gray |
Shell material | SUS tube |
Installation | M3 fixing screw, tightening torque below 0.2N-m |
Protection class | IP65 |










|
|

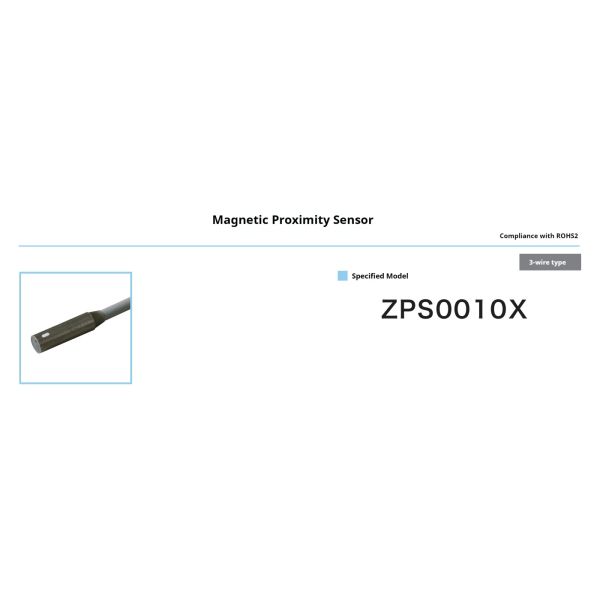

Magnetic Proximity Switch Sensor ZPS0010X Inductive Proximity Switch with Npn Normally Open Output Voltage 5V 24V SUS Tube Images |
