Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines

Shenzhen Muye Precision Control Electromechanical Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines

Rated voltage : DC24V/20MA

Service time : 3 million times

machinery test report : Not Available

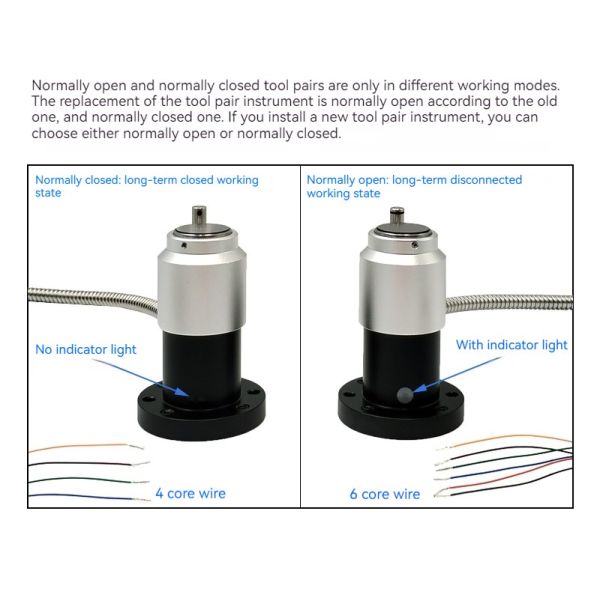

Model 1 : normally open

warranty : 1 Year

MOQ : 1 piece

video outgoing-inspection : Provided

Place of Origin : Guangdong, China

Contact force : 2.5N

Machine Type : Milling Machine, Grinding Machine, Drilling Machine, shaping machine

Material : M26D-20 (Aluminum)

Water proof and oil proof : IP67*100%, oil-proof sealing performance

Products name : CNC automatic tool setter

Model 2 : normally close

Repeatability : 0.001mm

Price : $32-35 / piece

weight (kg) : 1.2

Electric shock life : 5mm

Brand Name : Makinopc

Contact Now

Products Description

Makinopc Original Factory Supply High Precision Automatic Tool Setter Z Axis Height Sensor for CNC Milling Engraving Machine Centers

Key Features

This tool setter can completely replace the original MEDELON TM26D-20. It is mainly used for CNC machining centers, engraving and milling machines, and high-gloss machine, glass and jade machine and other equipment tool measurement, wear and damage detection, detection and knife breakage detection; An alarm signal will occur when the stroke is exceeded, Breakage accidents can be prevented.
Product Paramenters
Product Name
Automatic Tool Setter
Model
M26D-20 (Aluminum)
Diameter of cutter face
20mm
The main body
Aluminum alloy
Contact site material
Superhard alloy
Surface treatment
Grinding 4S mirror
Output mode
Normally open/normally closed
Pre-trip
nothing
Stroke
5mm
Repeatability
0.002mm (condition: operating speed 50-200mm/min)
Contact life
3,000,000 times
Protecting the structure
IP67*100% waterproof and oil-proof sealing performance
Contact force
1.5N (installation must be vertical)
Contact rating
DC24V-20mA(MAX) (recommended value 10mA) resistive load Standard 5m oil resistant, 4.8 in 6 cores, tensile strength 30N, bend radius R7
Cable material
PVC
Protection tube
8mm 304 stainless steel 1.5m long
Indicator lights
Normally closed LED lights are on when working
Installation hole spacing
40mm
Net weight
406g
Gross weight
464g
Overtravel alarm signal
Output mode: NC normally closed (about 2.5mm from the detection signal) Contact voltage: DC24V-20mA(MAX) (recommended value 10mA)
resistance load
Details Images
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Makinopc CNC Automatic Aluminum Tool Zero Setter 0.001mm Repeatability IP67 Waterproof Oil-Proof for Z Axis Milling Machines
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
