Makinopc MS88R Tool Setter Precision Control Multi-Directional Punching Machine Pre-Setter Z-axis Sensor 3 Months Warranty 1kg

Name: Makinopc MS88R Tool Setter Precision Control MultiDirectional Punching Machine PreSetter Zaxis Sensor 3 Months Warranty 1kg
Brand: Makinopc
Price: 155 USD

Quality Makinopc MS88R Tool Setter Precision Control Multi-Directional Punching Machine Pre-Setter Z-axis Sensor 3 Months Warranty 1kg for sale

warranty : 3 Months

Machine Type : Milling Machine, Drilling Machine, turning machine, lathe machine, Grinding Machine

machinery test report : Not Available

weight (kg) : 1.5

MOQ : 1 piece

Price : $155-159 / piece

Place of Origin : Guangdong, China

Brand Name : Makinopc

video outgoing-inspection : Not Available

Contact Now

Products Description

Key Features

MS88R multi-directional tool setter is mainly used for CNC machine tools CNC machining centers tool length tool diameter tip chipping, deflection, broken tool detection, wear and tear fracture detection, etc.; is a variety of vertical, horizontal gantry machining centers tool special measurement system, using cable connection with CNC machine tools real-time communication with a special macro program. Alarm signals will occur beyond the stroke, which can prevent breakage accidents!

Product Paramenters

Product Name	Multi-Directional Tool Setter
Product Model	MS88R
Output Mode	Hardwire connection transmission; NO(Normally open)
Contact Diameter	Disk 12/14/16mm, Square 13mm*13mm(Optional)
Measuring direction	X,Y,+Z
Contact part material	Ceramic
Hardness	Mohs hardness 8.5
Repeatability	0.001mm(condition:operation speed 50-200mm/min)
Contact life	5 million times
Contact strength	1.3-2.4N (depending on sensing direction)
Protection structure	IP68
Maximum overtravel	XY: 15°, Z: 4mm
Contact rating	DC24V20mA(MAX) Recommended value 10mA Resistive Load
Cable specification	Standard 5m (6.0mm diameter, 4 core shielded cable)
Cable jacket	Standard 2m (customizable) Minimum bending radius R25
Power supply	12-30VDC
Precautions	Be sure to use within the rated power supply range. (12-30VDC);
Precautions		Ground protection or shielding required for mounting base

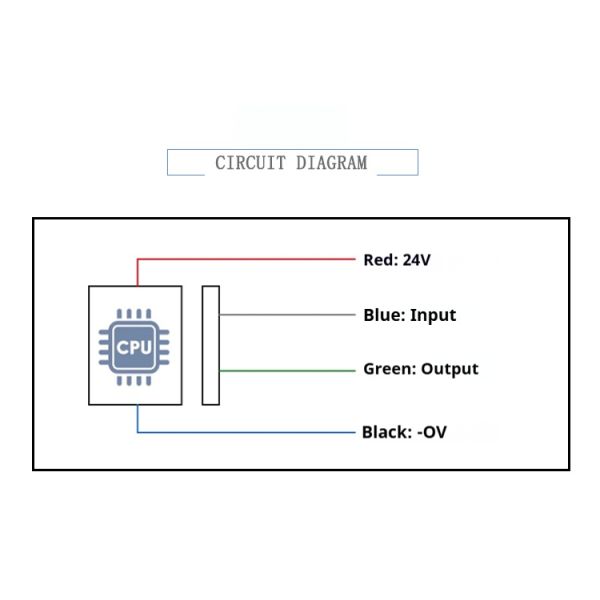

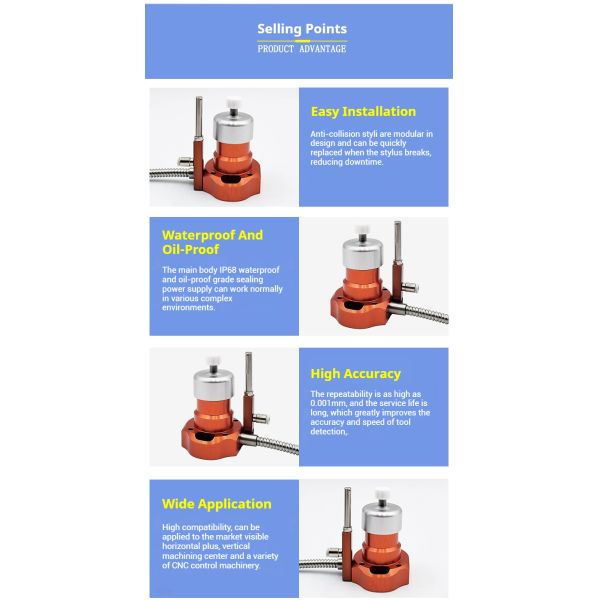

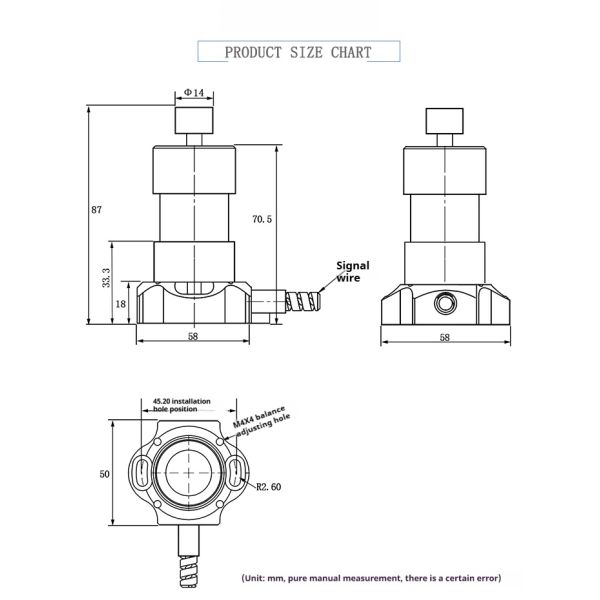

Details Images

Makinopc MS88R Tool Setter Precision Control Multi-Directional Punching Machine Pre-Setter Z-axis Sensor 3 Months Warranty 1kg

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
