Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers

Name: Renishaw TS27R Wired 3D TouchTrigger Tool Setter for Machining Centers
Brand: Renishaw
Price: 1 USD

Quality Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers for sale

Transmission Mode : Hardwire connection transmission

Price : $1,225-1,239 / piece

Place of Origin : Guangdong, China

Output Mode : normally open

weight (kg) : 2

machinery test report : Not Available

warranty : 1 Year

Repeatability : 0.001mm (condition: operating speed 50-200mm/min)

Contact strength : XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)

video outgoing-inspection : Provided

Measuring direction : ±X,±Y, +Z

Contact part material : Super hard alloy

Stroke : XY plane 12.5°, 2-way 6.35mm

Contact life : >10 million times

MOQ : 1 piece

Contact Diameter : 14-20mm

Surface treatment : Grinding 4S mirror

Brand Name : Renishaw

Machine Type : Milling Machine, turning machine, lathe machine

Contact Now

Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers

Renishaw TS27R Contact Tool Setting Probe - RBE. Compact 3D touch-trigger tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.

Products Description

Brief Introduction

The TS27R is a tool setter for vertical machining centers that enables the user to set both tool length and diameter of rotating tools, and to carry out broken tool detection.

Product Paramenters

Product Name	Renishaw TS27R Wired 3D Touch-Trigger Tool Setter
Product Model	MS27R
Output Mode	normally open
Transmission Mode	Hardwire connection transmission
Contact Diameter	14-20mm
Measuring direction	±X,±Y, +Z
Contact part material	Super hard alloy
Surface treatment	Grinding 4S mirror
Repeatability	0.001mm (condition: operating speed 50-200mm/min)
Contact life	>10 million times
Contact strength	XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
Protection structure	IP68
Stroke	XY plane 12.5°, 2-way 6.35mm
Pre-travel	None
Contact rating	DC24V~20mA(MAX) Recommended value 10mA Resistance load
Power supply	12-30VDC
Cable specification	Standard 5m (6.0mm diameter, 4 core shielded cable)
Protection Tube	2m
Precautions	Be sure to use it within the rated power range. (12-30VDC) Mounting base requires grounding protection or shielding.

Details Images

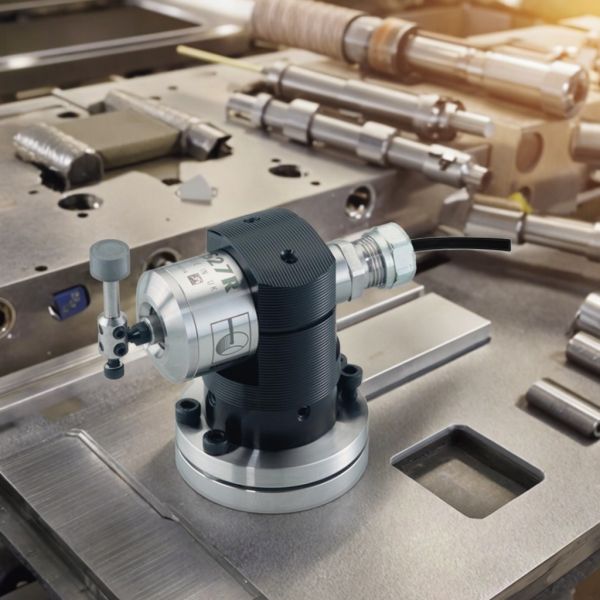

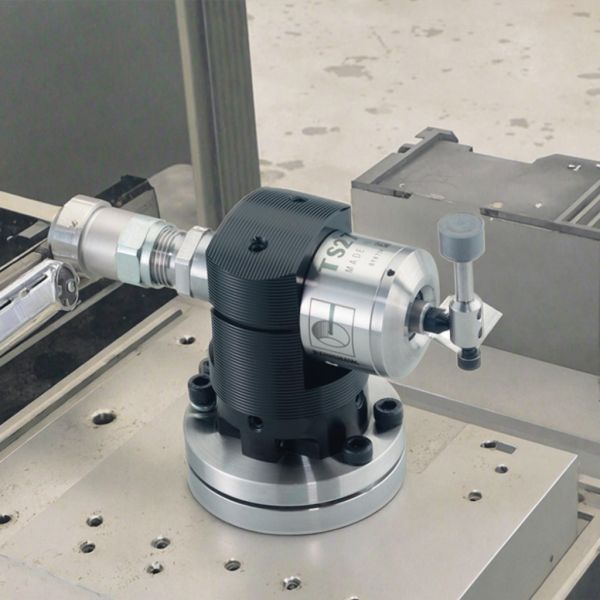

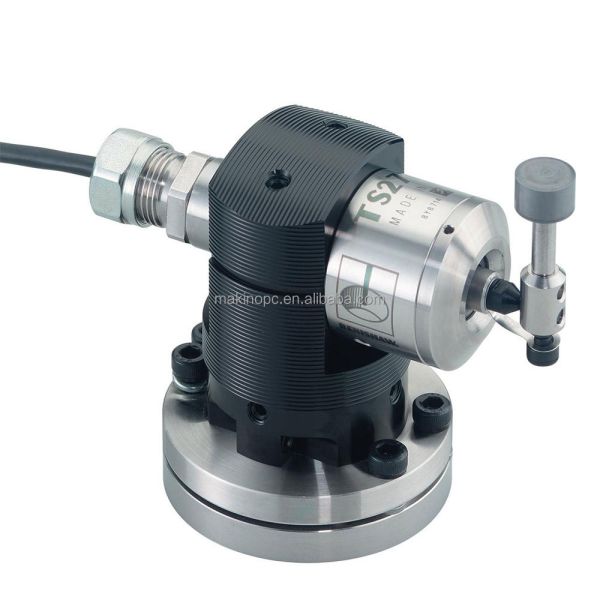

Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
