weight (kg) : 0.5
warranty : 1 Year
Supply Voltage : DC5~24V
Place of Origin : Guangdong, China
MOQ : 1 piece
Brand Name : Makinopc
Price : $20-25 / piece
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Boring Machine, Drilling Machine
Supply Voltage | DC5~24V |
Number of sensors | 1~4pcs |
Stroke | 6mm |
Operating force | 0.8~1.2N |
Retraction [MD] | 0.08mm or less |
Repeat Positioning Accuracy | ±0.001mm |

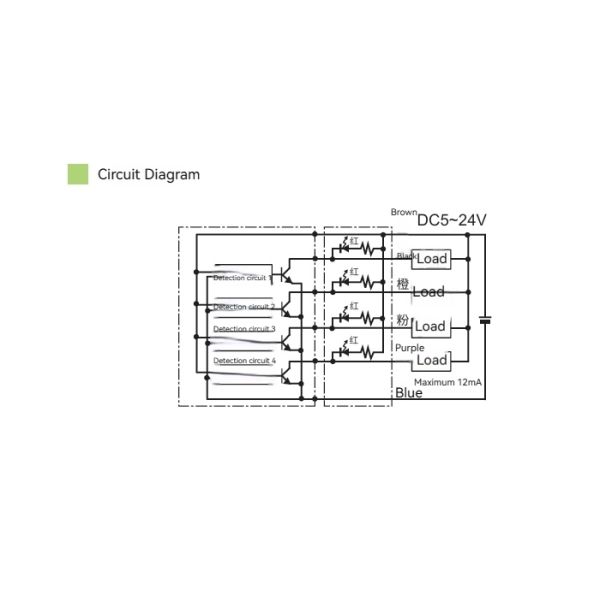

Output method | NPN Normally open (ON for proximity) |
Output current | 12mA MAX |
Consumption current | 15mA MAX |
Operating Frequency | 60 times/min or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ3.6(MAX)×1m |
Rubber tube material | Nitrile rubber |
Housing and Nut Material | SUS |
Mounting | M3 nut, tightening torque 0.3N-m |

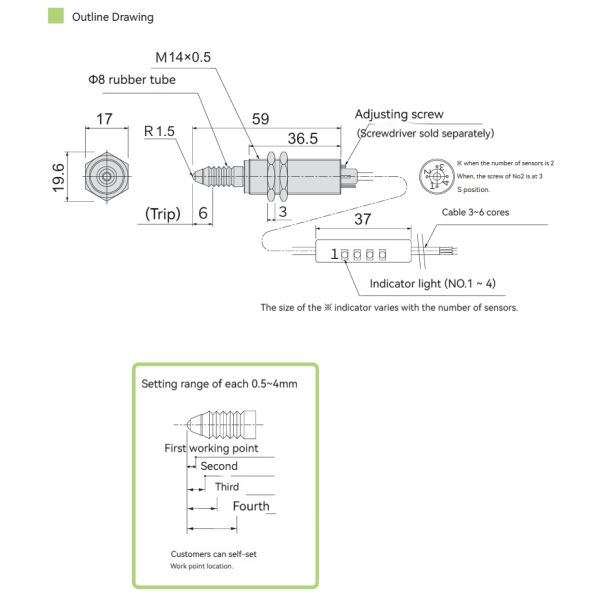

Mounting hole processing size | Φ14+0.5 / 0 |
Indicator Light | Approx. 100mm from sensor body |
Protection class | IP67 |







|
|

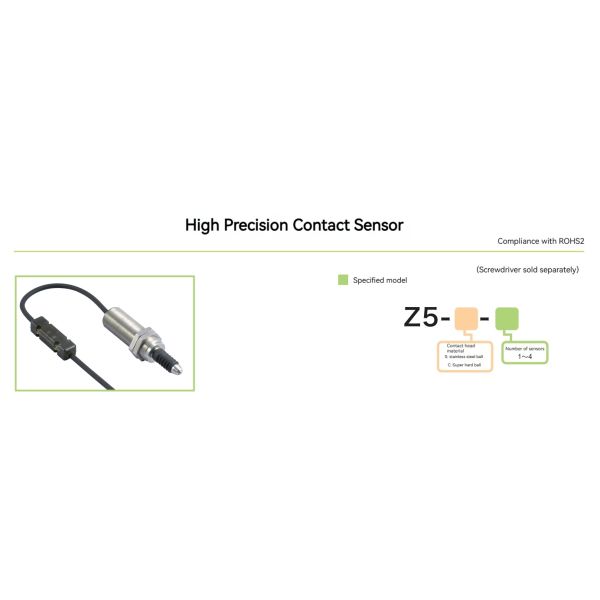

Automation Equipment CNC Machine Tools Contact Sensor Multi-travel Switch Contactless signal Sensor Japan Original Imported Z5 Images |
