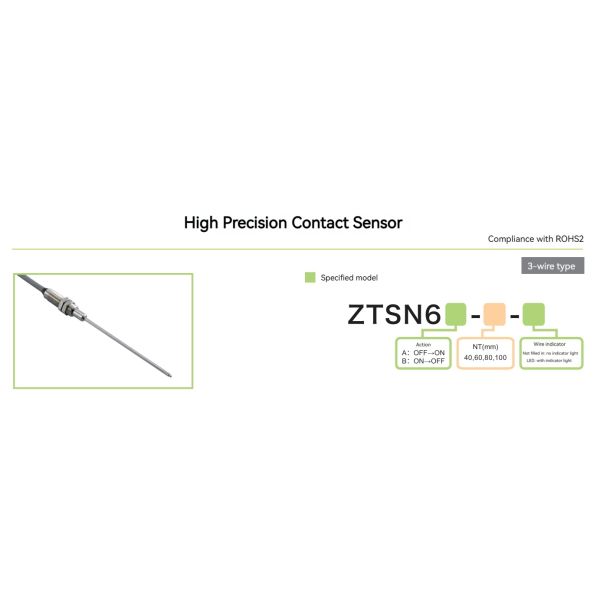

High Precision 0.001mm Small CNC Machine Sensor Contact Type Measuring Long Handle Probe Automatic Sensing Part ZTSN6

Name: High Precision 0001mm Small CNC Machine Sensor Contact Type Measuring Long Handle Probe Automatic Sensing Part ZTSN6
Brand: Makinopc
Price: 22 USD

Quality High Precision 0.001mm Small CNC Machine Sensor Contact Type Measuring Long Handle Probe Automatic Sensing Part ZTSN6 for sale

warranty : 1 Year

MOQ : 1 piece

Price : $22-29 / piece

Place of Origin : Guangdong, China

weight (kg) : 0.5

Brand Name : Makinopc

Supply Voltage : DC5~24V

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

Contact Now

Products Description

Key Features

High precision 0.001mm small CNC machine tool sensor contact type measuring long handle probe automatic imported from Japan ZTSN6

Product Paramenters

Supply Voltage	DC5~24V
Static load resistance	100kN
Stroke	1mm
Operating force	0.25N
Work point position [PT]	0.2~0.5mm
Differential [MD]	0.1mm or less
Repeat positioning accuracy	±0.01mm
Output method	ZTSN6.
		ZTSN6: NPN Normally open (ON for proximity)
		ZTSN6(B): NPN normally closed (OFF at proximity)
		ZTSN6(B): NPN normally closed (OFF at proximity)
Output current	ZTSN6: 15mA MAX
		ZTSN6-LED: 12mA MAX
Current consumption	ZTSN6: 12mA MAX
		ZTSN6-LED: 15mA MAX
Operating Frequency	60 times/min or less
Withstanding Voltage	AC1000V
		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20°C~+85°C (no condensation)
Working environment humidity	20~95%RH
Wire specification	Φ2.8x1m
		ZTSN6A: Gray
		ZTSN6B: Black
Material	Housing/Nut/Probe: SUS303

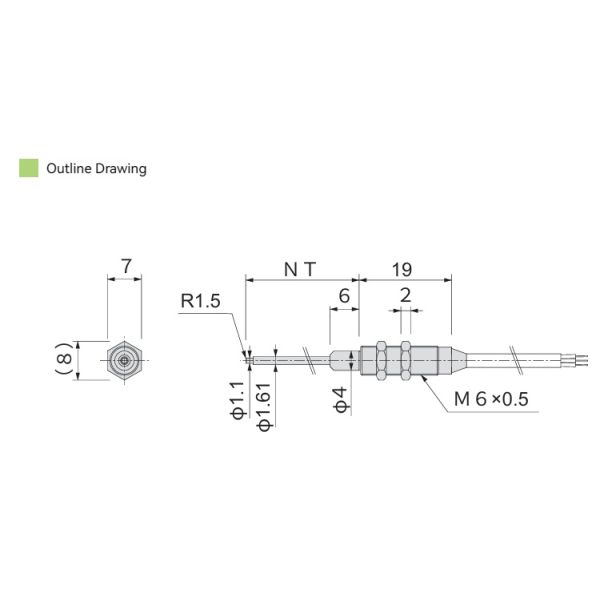

Installation	M6 nut, tightening torque below 2N-m
Installation aperture processing size	Φ6.5＋0.5 / 0
Protective Cable Material	SUS304
Indicator Lamp	ZTSN6	None
		ZTSN6-LED	Approx. 100mm from the sensor body
Protection class	IP65

Note) Do not apply a force of 15N or more to the lever.
