Marketing Type : Ordinary Product
Place of Origin : Guangdong, China
video outgoing-inspection : Provided
Brand Name : OEM/ODM
MOQ : 1 piece
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
warranty : 1 Year
weight (kg) : 0.5
machinery test report : Not Available
Price : $12-18 / piece
Applicable Industries : CNC machining center
Condition : New
Core Components : Housing/Nut/Operating Rod:SUS303
Supply Voltage | DC5~24V | ||
Stroke | 3mm | ||
Operating force | 0.4N | ||
Work point position [PT] | 0.2~0.5mm | ||
Differential [MD] | 0.1mm or less | ||
Repeat positioning accuracy | ± 0.002mm | ||
Output method | ZTSM15: | ||
NPN Normally open (ON for proximity) | |||
ZTSM15(B): | |||
NPN normally closed (OFF at proximity) | |||
Output current | ZTSM15 | 15mA MAX | |
ZTSM15(B) | |||
ZTSM15-LED | 12mA MAX | ||
ZTSM15(B)-LED | |||
Current consumption | ZTSM15 | 12mA MAX | |
ZTSM15(B) | |||
ZTSM15-LED | 15mA MAX | ||
ZTSM15(B)-LED | |||
Operating Frequency | Below 60 times/min | ||
Withstanding Voltage | AC1000V | ||
(1 minute, between the whole charging part and the shell) | |||
Insulation resistance | DC250V | ||
(20MΩ or more, between the whole charging part and the shell) | |||
Operating Ambient Temperature | -20°C~+85°C (no condensation) | ||
Working environment humidity | 20~95%RH | ||
Wire specification | Φ2.8x1m | ||
ZTSM15: Gray | |||
ZTSM15(B): Black color | |||
Material of operating rod | SUS303 | ||
Housing Material | Cast zinc alloy | ||
Indicator light | ZTSM15 | None | |
ZTSM15(B) | |||
ZTSM15-LED | Approx. 100mm from sensor body | ||
ZTSM15(B)-LED | |||
Protection Grade | IP65 | ||







|
|

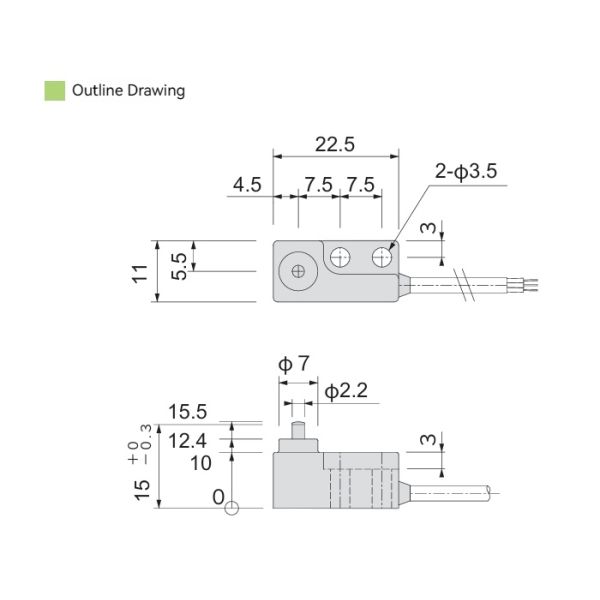

High Precision 0.002mm Transducer Sensor Without Contact Measuring CNC Machine Limit Switch Part ZTS15 Images |
