High Precision CNC Automatic Equipment Contact Sensor 24v Contactless Probe Inductive Switch ZTSB12

Name: High Precision CNC Automatic Equipment Contact Sensor 24v Contactless Probe Inductive Switch ZTSB12
Brand: Makinopc
Price: 10.30 USD

Quality High Precision CNC Automatic Equipment Contact Sensor 24v Contactless Probe Inductive Switch ZTSB12 for sale

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine

Work point position [PT] : 0.3~0.6mm

Stroke : 1mm

warranty : 1 Year

Working Frequency : Less than 60 times/minute

Repeat positioning accuracy : ±0.005mm

ON hold : Below 0.1mm

Output current : 15mA MAX

Place of Origin : Guangdong, China

Brand Name : Makinopc

Supply Voltage : DC5~24V

Shell nut material : SUS303

Price : $10.30-15.30 / piece

weight (kg) : 0.5

Consumption current : 12mA MAX

Ball Material : SUS

MOQ : 1 piece

Contact Now

Products Description

Key Features

Sensors play a vital role in modern technology, they are like the five human senses that help us sense and understand our surroundings. There are many types of sensors with different functions, which are widely used in various fields.

Product Paramenters

Supply Voltage	DC5~24V
Stroke	1mm
Operating force	H：7N
	J：0.5N
Work point position [PT]	0.3～0.6mm
Differential [MD]	0.1mm以下
Repeat positioning accuracy	±0.01mm
Output method	ZTSB12(A) ：
		NPN常开(接近时ON)
		ZTSB12(B) ：
		NPN常闭(接近时OFF)
Output current	ZTSB12 ：15mA MAX
	ZTSB12-LED：12mA MAX
Current consumption	ZTSB12 ：12mA MAX
	ZTSB12-LED：15mA MAX
Operating Frequency	Less than 60 times/min
Withstanding Voltage	AC1000V
		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20°C~+85°C (no condensation)
Working environment humidity	20~95%RH
Wire specification	Φ2.8×1m
		ZTSB12(A): Gray color
		ZTSB12(B): Black color
Shell nut material	SUS303
Ball Material	SUS
Mounting	M10 nut, tightening torque below 12N-m
Mounting hole processing size	Φ10＋0.5 / 0
Indicator Light	ZTSB12	None
		ZTSB12 -LED	Approx. 100mm from the sensor body
Protection class	IP65

Note 1）It is suitable for molds, fixtures, and other environments where oil and moisture are used. 2）Please take care to prevent the insulation from falling off at the connection of the wire connector.

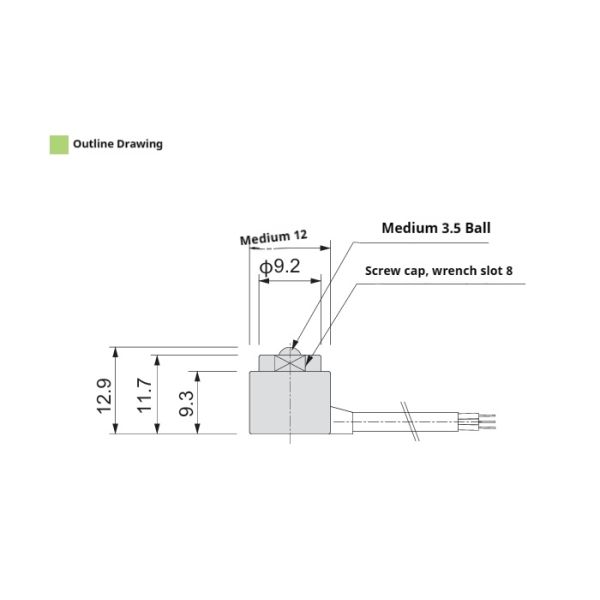

Details Images
